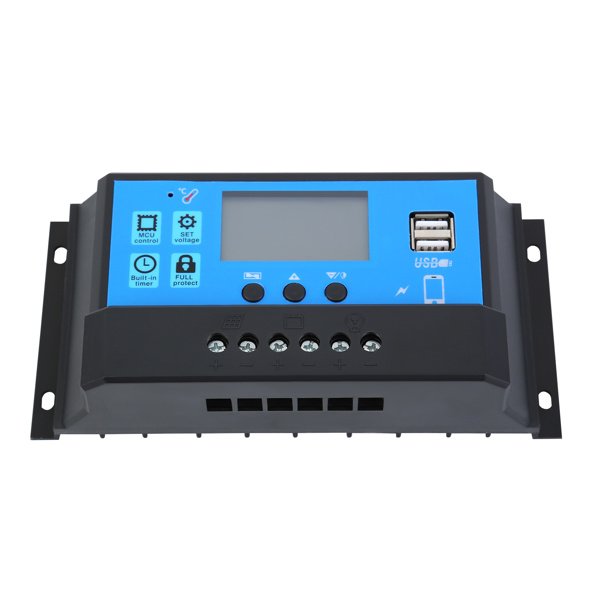

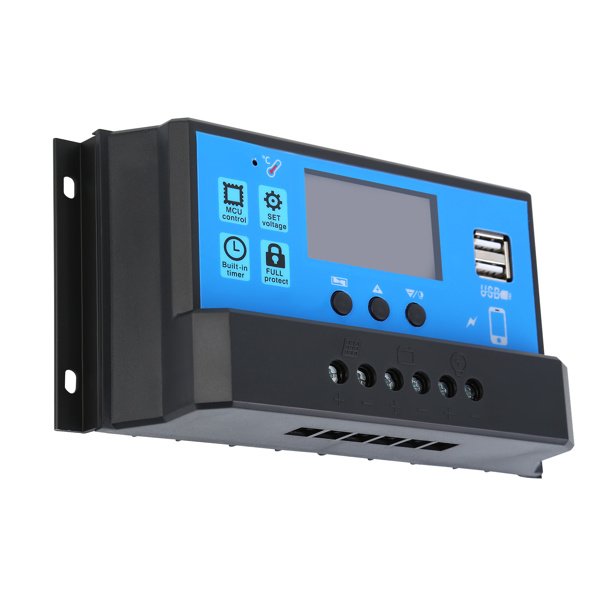

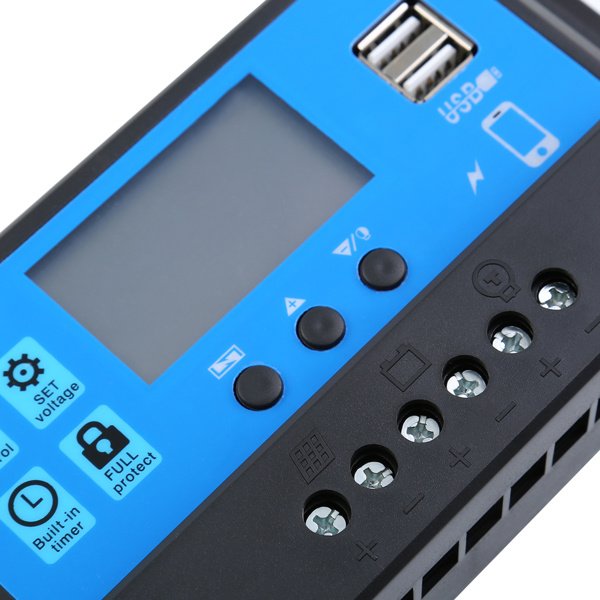

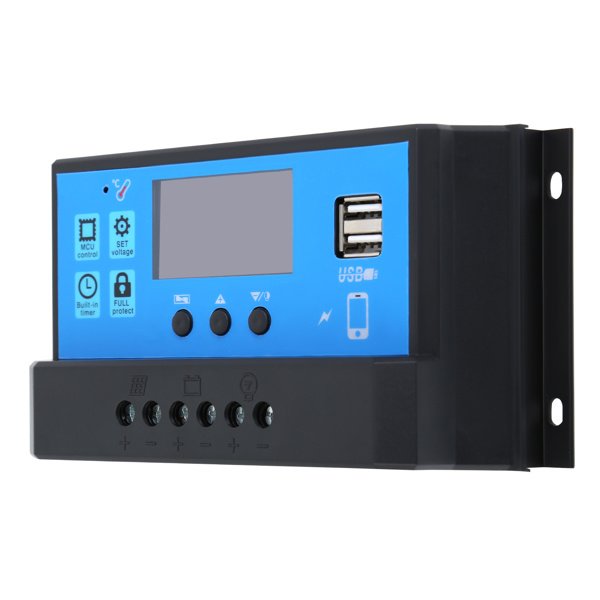

60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking
Details:
Features:
12V, 24V automatic recognitionDual MOS anti-backflow circuit, ultra-low heatBuilt-in over-current/short-circuit protection, reverse connection protection, all automatic recovery, no damage to the controllerComplete 3-stage PWM charging managementHigh-performance chip, multiple protection, light control and time controlEasy installation
Specification:

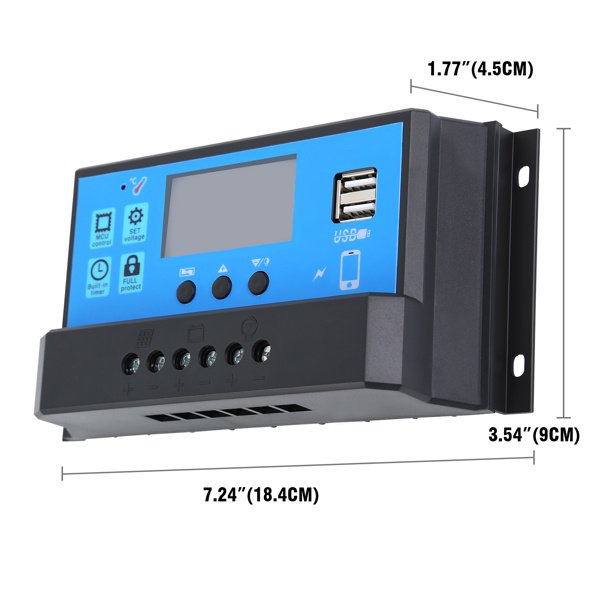

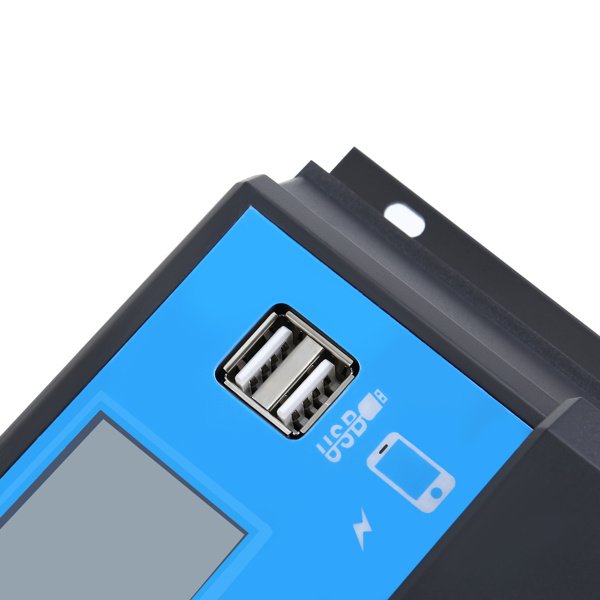

Model: YJSS60System voltage: 12V/24V automatic identificationRated charging current: 60ARated discharge current: 20AThe highest photovoltaic voltage: 12V system <25V/24V system <50VBoost charging voltage: b3 open type 14.6VFloat voltage: b1/14.4V, b2/14.2V, b3/14.6V, (adjustable range: 13V-15V)Discharge cut-off voltage: 10.7V, (adjustable range: 9.5V-11V)Discharge recovery voltage: 12.6V, (adjustable range: 11.5V-13V)Standby current: <10mAUSB output: 5V/2A MaxWorking temperature: -35~+60℃Size: 180*90*45mmWeight: 290g(Note: Floating charge voltage/discharge cut-off voltage/discharge recovery voltage Only for 12V system, if using 24V system,please set relevant parameters x2.)
The package includes:
1 x 60A Solar charge controller1 x User Manual
Features:
12V, 24V automatic recognitionDual MOS anti-backflow circuit, ultra-low heatBuilt-in over-current/short-circuit protection, reverse connection protection, all automatic recovery, no damage to the controllerComplete 3-stage PWM charging managementHigh-performance chip, multiple protection, light control and time controlEasy installation
Specification:
Model: YJSS60System voltage: 12V/24V automatic identificationRated charging current: 60ARated discharge current: 20AThe highest photovoltaic voltage: 12V system <25V/24V system <50VBoost charging voltage: b3 open type 14.6VFloat voltage: b1/14.4V, b2/14.2V, b3/14.6V, (adjustable range: 13V-15V)Discharge cut-off voltage: 10.7V, (adjustable range: 9.5V-11V)Discharge recovery voltage: 12.6V, (adjustable range: 11.5V-13V)Standby current: <10mAUSB output: 5V/2A MaxWorking temperature: -35~+60℃Size: 180*90*45mmWeight: 290g(Note: Floating charge voltage/discharge cut-off voltage/discharge recovery voltage Only for 12V system, if using 24V system,please set relevant parameters x2.)
The package includes:
1 x 60A Solar charge controller1 x User Manual
