10 Pairs Solar Panel Connectors Solar Wire Adapter Male/Female IP67 Waterproof Connector
Details:
*Features*:
**Excellent Conductivity*:Comes with 1000V maximum pressure; 30A maximum current; copper tin-plated conductive core attributes to an excellent conductivity.
**Solar Panel Connectors*:Our connectors are designed for connect solar panels arrays and also specially designed to connect photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
**Premium Material*:The shell is made of hard plastic material which is high heat resistant; wear resistant and high insulation. And with its IP67 waterproof performance; it can be used in rainy or snowy day.
**Solar Male/Female Connector*:Comes with 10 pairs solar panel connector(10pcs male & 10pcs female); which is compatible with different insulation diameters.
**Easy Installation*:These solar panel connectors can be quick and simple assembled or removal. You can follow our user manual or surf on the internet to find some installation video.
*Specifications*:
Rated Voltage: 1000V DC (IEC)
Rated Current: 17A (1.5mm²); 22A(2.5mm²; 14AWG); 30A(4mm²; 6mm²; 12AWG; 10AWG)
Test Voltage: 6KV (50HZ; 1Min)
Ambient Temperature Range: -40℃~90℃/-40℉~194℉(IEC); -40℃~75℃/-40℉~167℉(UL)
Upper Limiting Temperature: 105℃/221℉(IEC)
Degree of Protection: IP67
Contact resistance: 0.5Mω
Safety Class: Ⅱ
Contact Material: Messing; Verzinnt Copper Alloy; Tin Plated
Insulation Material: PC/PPO
Locking System: Snap-in
Flame Class: UL-94-V0
Salt Mist Spray Test: IEC 60065-2-52

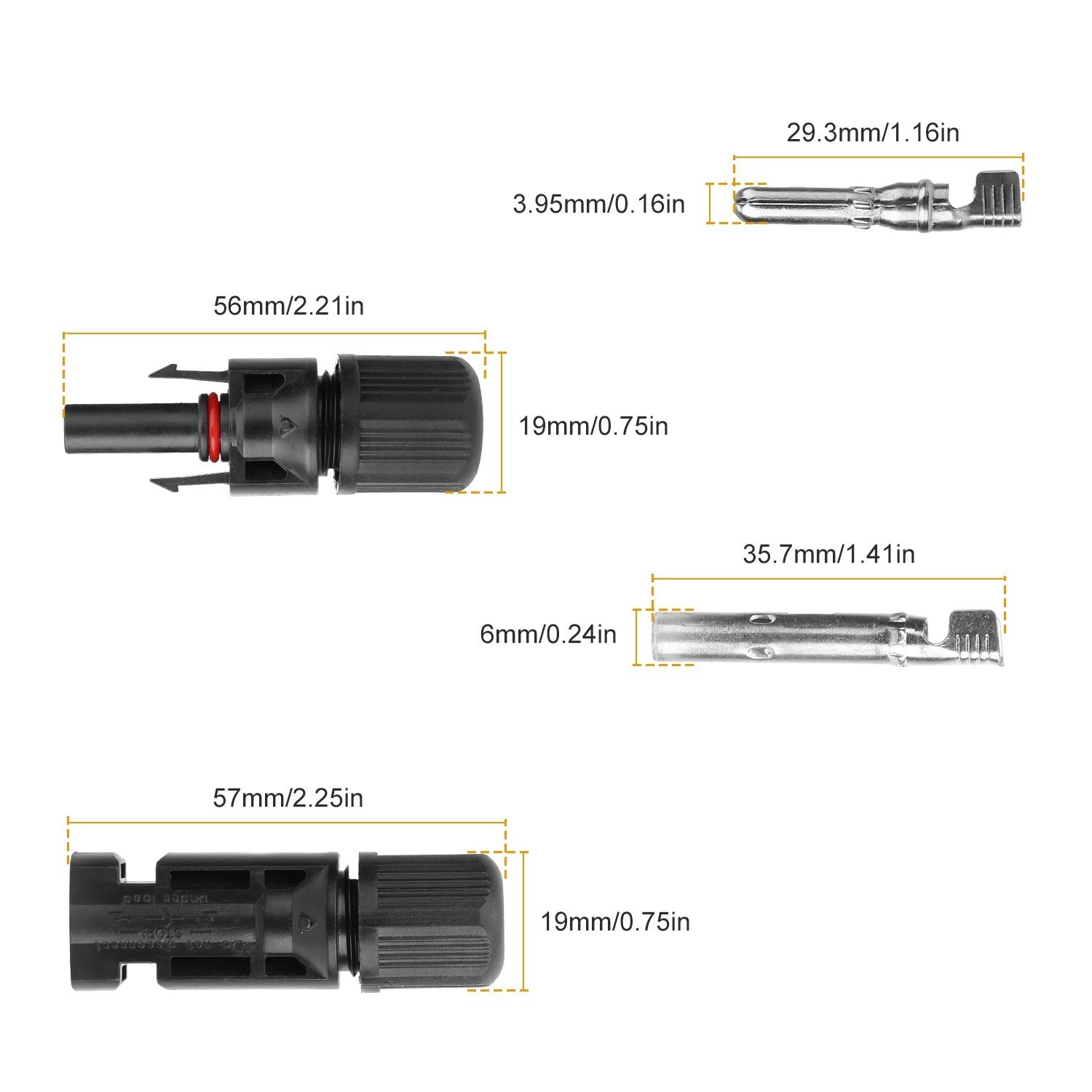

Item Size (Single):
2.21x0.75x0.75in (Male); 2.25x0.75x0.75in (Female)
Item Weight (Single): 8g/0.018lbs (Male); 9.0g/0.02lbs (Female)
*Package Lists*:
10x Pairs of Wire Connectors
1x User Manual
